chs pipe sizes

Understanding CHS pipe sizes is crucial for engineers, constructors, and professionals involved in various construction and infrastructure projects. Circular Hollow Sections (CHS) pipes are an integral part of structural building and mechanical systems. They offer unique features compared to other pipe shapes, making them a preferred choice in specific applications.

One key consideration is their dimensional specifications. CHS pipes are available in a wide range of diameters and thicknesses, which makes them versatile for different uses. The diameter ranges from as small as 21.3 mm (commonly used in mechanical frameworks) to as large as 508 mm or more, suitable for large-scale construction projects. The thickness of CHS pipes significantly influences their strength and ability to withstand different loads. Typically, thickness varies from 2.0 mm to 20 mm or more, depending on the structural requirements. This flexibility in size makes it easier to choose the appropriate pipe for a specific application, particularly when bespoke engineering solutions are required. The production process of CHS pipes also underscores their reliability. These pipes are manufactured through a cold-formed process, which enhances their mechanical properties, providing uniform sectional distribution along the pipe. This consistency translates into evenly distributed strength, making CHS pipes ideal for load-bearing applications, including building foundations and bridge supports. Cold-forming also improves the surface finish of the pipes, an advantage in filed assembly, where fittings and joints must be made seamlessly without causing structural weaknesses.

A critical advantage of CHS pipes is their enhanced resistance to torsion due to their circular cross-section. Unlike rectangular or square hollow sections, CHS pipes do not have flat sides, reducing issues related to torsional rigidity. This makes them particularly suitable for columns in construction, reducing the risk of twisting under load. The circular shape also offers excellent aerodynamic properties, a benefit for structures exposed to wind pressure, such as towers and masts.chs pipe sizes

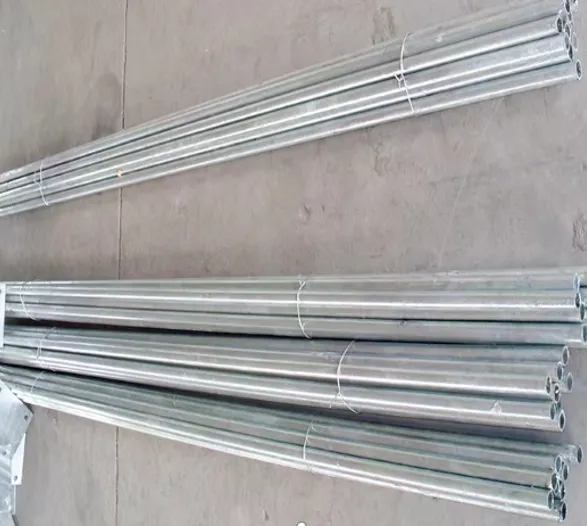

In terms of materials, CHS pipes are predominantly made from steel known for its strength, durability, and recyclability. The steel used in CHS pipes is often treated with additional coatings, like galvanization, offering increased protection against corrosion—a critical factor when used in outdoor or harsh environmental conditions. Various grades of steel, including mild steel and high-strength steel, are used based on financial and engineering criteria, ensuring there's a CHS pipe suitable for every structural need. The installation of CHS pipes is another advantage. Their inherent strength means that fewer supports are needed, simplifying the engineering plans and potentially reducing construction costs and timelines. Moreover, their uniform shape eases handling during transportation and storage, yielding further cost efficiencies. Finally, considerations for environmental impacts and sustainability are increasingly vital in material selection today. CHS pipes stand out as a sustainable option due to the recyclability of steel. They can be melted and repurposed, minimizing wastage and aligning with green building practices. The longevity of steel also means that structures require less frequent repair and replacement, reducing resource use over time. To optimize the use of CHS pipes, it is vital to engage professionals in the initial phases of project planning. Structural engineers can evaluate specific needs, ensuring the selected pipes meet both safety standards and economic constraints. By incorporating CHS pipes into structural designs, projects benefit from robust and cost-effective solutions, successfully meeting both functional and aesthetic requirements. As the building and construction industry continues to evolve, CHS pipes remain a resilient component, supporting architects and engineers in creating enduring structures.
